About this item

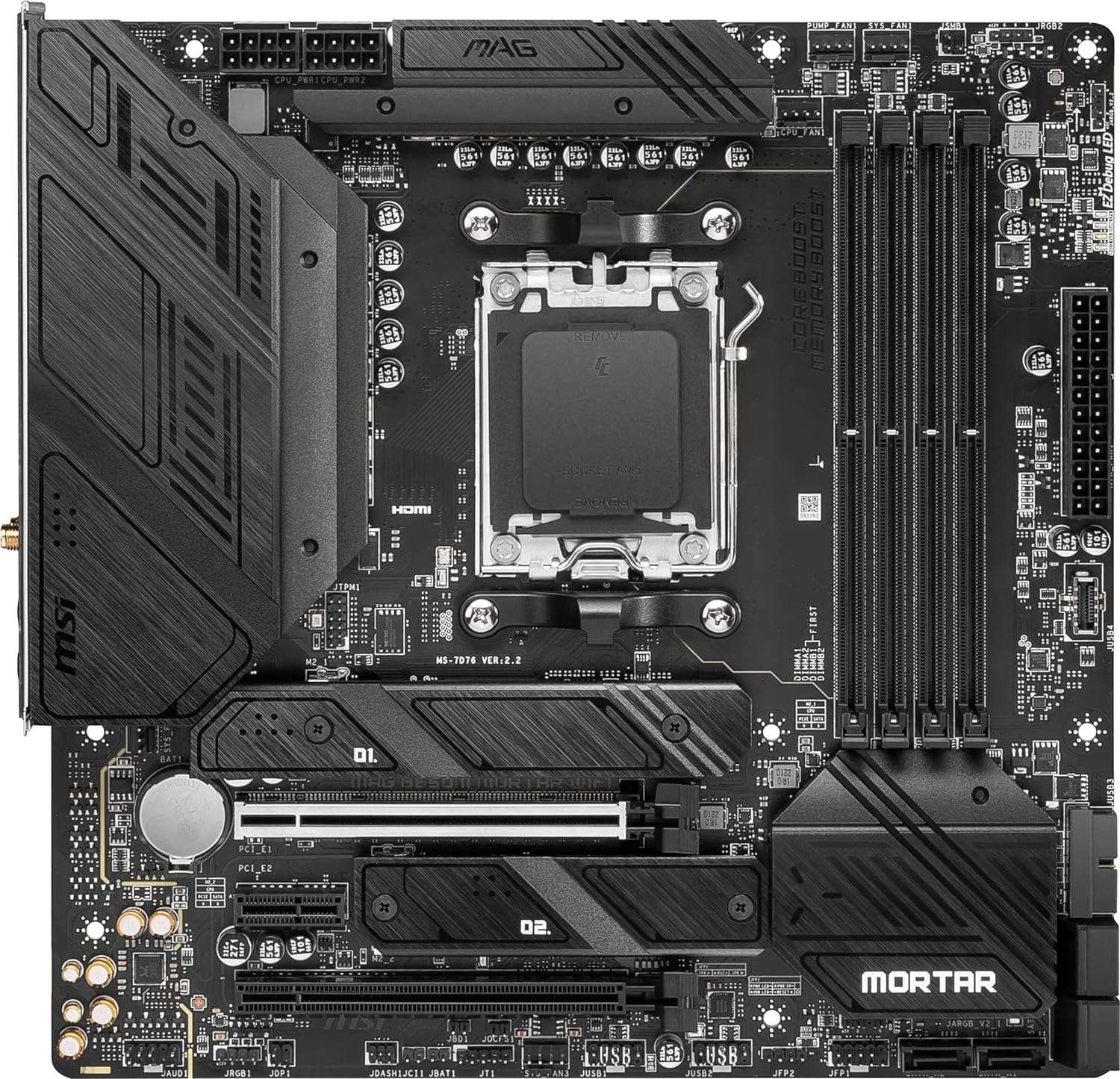

• POWERFUL VRM, Ryzen 7000 READY – The MAG B650M MORTAR WIFI employs an 12+2 phase Duet Rail VRM with 80A Power Stage for the AMD B650 chipset (AM5, Ryzen 7000 ready); Core Boost architecture supports multi-core overclocking
• INTEGRATED COOLING – VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Additional cooling includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer PCB with 2 oz. thickened copper
• DDR5 MEMORY, DUAL PCI-E 4.0 x16 SLOTS – 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 6400+ MHz); 2 x PCIe 4.0 x16 slots (64GB/s) support graphics cards
• DUAL M.2 CONNECTORS – Premium storage options consist of 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent SSD thermal throttling
• WI-FI 6E CONNECTIVITY – Network hardware includes Wi-Fi 6E with Bluetooth 5.2 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2×2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)
